World Leading Manufacturer

Monarch Domes

Monarch® Domes, Kayak, and Sup division represent the world's leading manufacturer of the original polycarbonate transparent domes, kayaks and sup. As of today, several thousand transparent domes have been produced for over 40 countries. As the sole supplier for America is pleased to be able to offer 4th generation models with the best in design and quality.

logo transarent 1.PNG

01     Product Introduction

02     Main Features

03     Product Series

04     Product Applications

05     Customized Projects

06     Transparent Kayak & Sup

04     Product Application

Index
Monarch Dome Introduction

Product Introduction

Pet Clothes

Monarch®™ series are brand-new characteristic domes house products that we have created. The product structure does not contain a metal supporting frame and has a 360-degree transparent view.



The primary material of the product adopts imported polycarbonate (the basic material of bullet-proof glass and explosion-proof shields) and aviation aluminum profile, which has high safety and strong protection. As a result, it can safely avoid snakes, insects, ants, and large beasts in the wild.



At the same time, the product adopts a modular assembly design, the installation and disassembly process is simple and fast, and the on-site assembly cost is low.

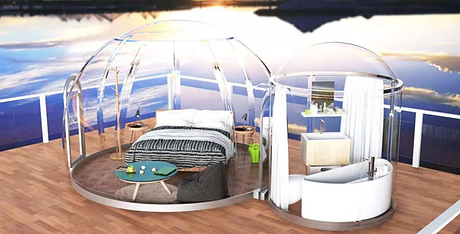

Monarch®™ series products have a variety of specifications, such as diameters of 2.1M, 3.3M, 4M, 5M, and 10M, and products of different specifications can be spliced and combined with each other. As a result, the product is highly flexible and can meet the application needs of multiple scenarios.

Main Featres

Main Features


The main part of our transparent dome house is made of polycarbonate. Polycarbonate is a tough thermoplastic resin titled "Plastic King." PC material has no toxic substances, has high heat resistance, good toughness and impact strength, and high flame resistance; it has a wide range of applications in industry and construction, such as aircraft cabin covers, architectural special-shaped curtain walls, bulletproof glass, explosion-proof shields, etc.

Good Light Transmittance (can reach up to 90%)

It will not be yellowing or fogging and decreases light transmission even with exposure to the sun.



UV Resistance

An anti-ultraviolet co-extrusion layer on the surface prevents the resin from aging and yellowing caused by sunlight and ultraviolet rays. In addition, the surface co-extruded layer has chemical bonds to absorb ultraviolet light and convert it into visible light, stabilizing plant photosynthesis (It is very suitable for protecting valuable artworks and exhibits from UV damage.)



Temperature Resistance

Will not cause quality deterioration such as deformation in the range of -40℃ ~ +120℃

Flame Retardance

According to the national GB8624-97 test, it belongs to the flame retardant B1 level, with no fire drop and no poisonous gas.



Impact Resistance

The impact strength of a PC endurance board is 250-300 times that of ordinary glass.


Transparent & Frameless

The product does not contain any metal frame and is 360° fully transparent, so guests will not miss the beauty of any corner.



Quick Installation and Easy Disassembly



Modular splicing assembly, a set of product installations can be completed within 2-3h, installation labour cost is low, the construction period is short, and it can be put into operation quickly. Products of any specifications can be spliced in structure, and the products have a variety of combinations.



Flexible connection



Products of any size can be connected quickly, and the products have a variety of combinations, which can flexibly create a living space.



High Safety and Comfort



The product has passed the CE certification; the material does not emit toxic gas. With the dome structure design, the product has excellent wind and impact resistance. In addition, the product has a standard ventilation system and an internal shading system to ensure indoor living comfort.



High Return on Investment



Compared with other types of residence products currently on the market, the Transparent dome house has a small investment in vacant rooms and a high rate of return. Therefore, it is presently the worthiest investment in camp residence products.

Electricity

With or Without Electricity

Solutions when the installation site has no electricity


Problem Description:



With high strength, long durability, eye-catching appearance, and eco-friendly materials, Monarch® & iglu® domes can be widely used for camp or glamping sites, resorts, hotels, restaurants, greenhouses, offices, etc.



To get closer to nature, some customers use our clear domes in places far away from the hustle and bustle of the city, such as forests, mountains, small islands, etc. But in these places often hard to get electricity. Will the domes get very hot or cold without electricity???


Usually, the temperature difference between the inside and outside of the Clear PC Dome is about 7-10 degrees Celsius.



If there is no shelter around the dome in hot summer, the temperature difference can be even higher!

So, please refer to below for our solutions if there is no electricity available!


Excellent Ventilation Design


Window and Door:

Take the Monarch® domes hot selling D4.5M and D5.3M iglu® as an example, Monarch® domes product comes standard with one door and two windows, and the windows and doors are equipped with screen windows to ensure air circulation.



Window and Door:



The door and window are made of high-quality aviation aluminum alloy with powder coating and anodizing treatment. It’s anti-corrosion, durable, and suitable for harsh outdoor environments.



Take the Monarch® iglu® domes hot-selling models of 4.5M and 5.3M Domes as an example, the product comes standard with one door and two windows, and the windows and doors are equipped with anti-mosquito screen windows.



The anti-mosquito screen windows are necessary for outdoor environments as they can improve ventilation performance and prevent mosquitoes' entry.


Curtain


Monarch® product is equipped with specially designed sunshade curtains, which can not only protect privacy but also have a good sunshade effect.

Sunshade Curtain



We use the high-quality sunshade curtains; the shade of curtain can reach around 90-95% which can also play a role in heat insulation.



All curtains and rails are custom-made according to the size of each PC Domes and are available in a variety of colors.



The curtains are also necessary for the domes, it can not only protect privacy, but also have a good sunshade effect.


Exhaust Fan


High-Efficiency Exhaust Fan:

The exhaust fan has a speed control switch, which can control the fan's speed, and the maximum speed is 2500 rpm. The bottom is designed with anti-mosquito gauze, which can be removed for cleaning inside, and is available in AC 110-230V voltage, suitable for accommodation applications and restaurants.

High-Efficiency Exhaust Fan



The input voltage of this exhaust fan is DC24V, which can be directly connected to the solar system. The power is about 30W. Therefore, it does not need a large-capacity battery and is easy to use.



The exhaust fan has a speed control switch, which can control the fan's speed, and the maximum speed is 2500rpm, which can significantly improve the ventilation performance of the domes. In addition, the bottom part is designed with an anti-mosquito gauze, which can be removed for cleaning.



The exhaust fan can be installed at any position on the top and side, with great flexibility.


Shading Solutions


Artificial Grass or Awning:

The artificial grass can be added to the side of the PC Dome.

It can not only have the effect of heat insulation, but also fit perfectly with some application scenarios

PVC Awning



The awning is specially designed according to the size of our PC Domes, while retaining the transparent area at the top, which does not affect the stargazing experience at night. With this awning, the temperature in the dome is 5℃ lower than that of the regular PC Dome.



Concept Design - The decorative plant growth pergola



Turning the room into a characteristic romantic flower room. On the premise of not affecting the viewing of the starry sky and the external natural landscape, it forms a natural thermal insulation layer, which greatly improves living comfort.


Infrared Resistance


Infrared Resistance Material:



The infrared coating material can cut about 90% of infrared rays in sunlight and has better thermal insulation performance. Compared with the conventional version, the body temperature difference is about 5°℃.

Infrared Resistance Material



The sun's heat is mainly transmitted to the earth through infrared rays; we have the upgraded version material with infrared resistance available for our PC Domes.



The infrared coating material can cut about 90% of infrared rays in sunlight and has better heat insulation performance.



Compared with the domes with conventional version material, the temperature difference that the human body can feel inside is about 5℃.


In Winter Time


Main Material:

The thermal conductivity (K value) of the PC board is lower than that of ordinary glass and other plastics, the thermal insulation effect is 7%-25% higher than that of the same glass, and the thermal insulation of the PC board is as high as 49%. Thus, the heat loss is significantly reduced, and it is an environmentally friendly material for buildings with heating equipment.

The thermal conductivity (K value) of the PC board is lower than that of ordinary glass and other plastics, the thermal insulation effect is 7%-25% higher than that of the same glass, and the thermal insulation of the PC board is as high as 49%. Thus, the heat loss is significantly reduced, and it is an environmentally friendly material for buildings with heating equipment.

The sealing performance is excellent with the sealing silicone strip for our domes; it can improve the thermal insulation performance and prevent mosquitoes and dust from entering the splices.

The polycarbonate material that we use is B1 class flame retardancy, so you can use a fireplace in the dome for heating if there is no electricity available in cold winter.


Heating System Floor:

We can also provide the heating system floor; it can be connected with each other easily.


Conclusion:

  • Our dome house is suitable for use in an environment of  -25 ℃ ~ +45 ℃.


  • The staying experience would be much better if we could use an air-conditioner.


  • The temperature inside the dome can be maintained at 25°C with an air-conditioner turned on for half an hour when the outdoor temperature is -5°C. ( Based on the actual feedback data of a 5.3M dome customers)


  • The temperature inside the dome can be maintained at around 22°C with an air-conditioner turned on for one hour when the outdoor temperature is 35°C. ( Based on the actual feedback data of a 4.5M dome customers)


  • The temperature inside a dome with the infrared resistance material is about 5-7 ℃ lower than the standard UV resistance PC material. (Based on the actual tests in our showroom)


  • Inverter Air Conditioner Recommendation (Based on -10 ℃ ~ +30 ℃)

D3.0M Dome: 1.0P ( 2300-2500W)             D3.5-4.0M Dome - 1.5P (3000-3600W)           D4.5-5.3M Dome - 2.0P (4000-5200W)

D6.0M Dome - 3.0P (6500-7200W)             D7.0M Dome - 3.0P + 2.0P                             D9.0M Dome - 2 Sets of 2P

                                                                                                                                                                    -  2 Sets of 3P

  • Our clear PC Dome is still a good option for your project, even if no electricity is available at the installation site.

  •  If the temperature is high in summer and there is no shelter around the installation site, we recommend using an awning for our domes.

  • All RGB LED Strip Lights can also directly connect with the solar system (DC24V).
